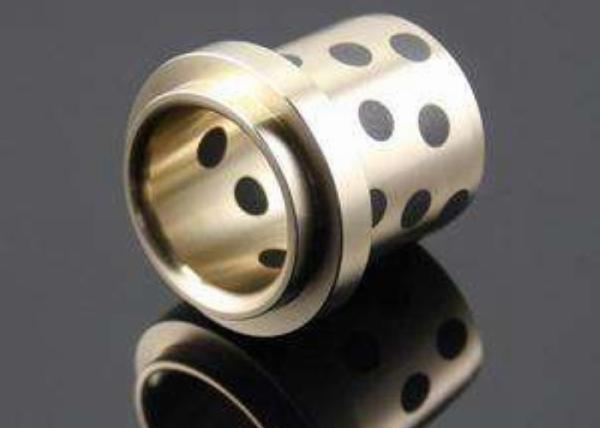

Aluminum-Copper With Solid Lubricant Plugs Casting Copper Flanged Bearings
JDB Flanged Bearings is backed with Aluminum-Copper alloy with good capability of mechanics, castings and anti-erosion.
JDB Flanged Bearings is backed with Aluminum-Copper alloy with good capability of mechanics, castings and anti-erosion. The surface of JDB Flanged Bearings is regularly and finely machined with sockets in which particular solid lubricant Plugs is filled.
Embedded in the falnge part because there is no lubricant, not axial load.
The surface of JDB Flanged Bearings is regularly and finely machined with sockets in which particular solid lubricant is filled.
Diamater 31.5mm-63mm hydraulic cylinder is put on the intermediate shaft using fresh products.
JDB Flanged Copper Bearings is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.
Avoid use in seawater.
Chemical Compositions
| Product NO. | Chemical Compositions |
| TOB 052 | Cu | Al | Fe | Mn | Zn | Si | Sn | Pb |
| >83 | 8~11 | 2~4 | <0.1 | <0.5 | <0.2 | <0.3 | <0.2 |
Physical and Mechanical Performance
| Performance Index | Data | Performance Index | Data |
| Density | g/cm³ | 8.5 | Hardness | HB | ≥160 |
| Linear Expansion Coefficient | 10^-5/℃ | 1.7-1.9 | Flexibility Coefficient | KN/mm² | 90-110 |
| Heat-conducting Coefficient | W/(m·k) | 38-55 | Tensility | % | ≥15 |
| Tensile Strength | N/mm² | ≥590 | Friction | Oil Lubrication | μ | 0.03 |
| Anti-compact Tenacity | ≥KJ/m^3 | 150-250 | Dry Friction | 0.16 |
Application Condition Limits
| Lubrication Conditions | Non- Lubrication | Periodical Lubrication | Consecutive Lubrication |
| Working Temperature Limits | ℃ | -250~+400 | -40~+150 | -40~+150 |
| Max. Load pressure | N/mm² | 50 | 50 | 50 |
| Max. Linear Velocity | m/s | 0.25 | 0.50 | 1.00 |
| Max. PV Value | N/mm²·m/s | 1.25 | 2.45 | 2.45 |
