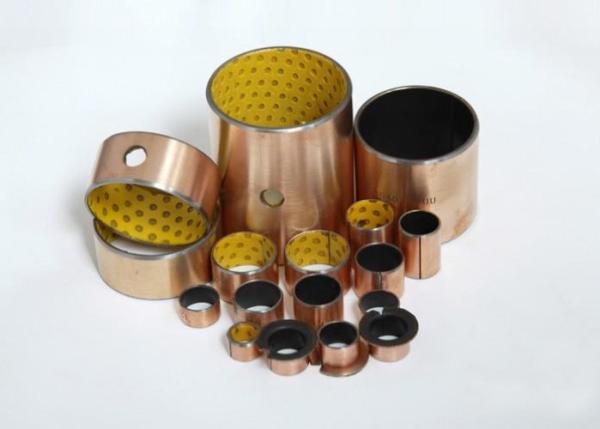

POM Bearing Lined With Bronze , Powder Sintered Metal Bearings And Steel Backed

  • 1
  • 2

Brand Name : TOB POM Boundary Lubricating Bearings

Certification : ISO 16949

Place of Origin : China

MOQ : negotiated

Price : negotiated

Payment Terms : T/T

Supply Ability : negotiated

Delivery Time : negotiated

Packaging Details : Cartons and Pallets

Material : Low-Carbon Steel + Porous Bronze + Yellow POM

Types : Wrapped bushes, Thrust washer

Application : automotive chassis, forging machines, mine quarrying machines, metal melting and casing machines and in water irrigating and steel rolling industries, etc.

Hardness : >270 HB

Working Temperature : -40~+120℃

Max. PV value : Grease 2.8 N/mm²·m/s, Oil 50 N/mm²·m/s

Contact Now

POM Bearing, Lined with Bronze, Powder Sintered and Steel Backed

· Straight sets

· Gasket

· Sheet

· Non-standard components

Detailed description

Suitable for long-term use under boundary lubrication without maintenance; recommends initial grease, oil hole bearing surface can guarantee the best fat distribution, while refueling process can greatly improve the life of the product; suitable for heavy load at low speed rotary motion and the rocking motion; excellent carrying capacity, low friction coefficient and low wear rate; no water absorption and oil absorption, dimensional stability; after the press-fit bearing can be processed again to get a better tolerances.

Technical Parameters

load pressure P(Dry friction)
Static load 140 [ N/mm2 ]
Dynamic load 70 [ N/mm2 ]

Max line speed V
Grease Lubrication 2.5 [ m/s ]

PV value limit
Grease Lubrication 2.8 [ N/mm2 ]

Friction Coefficient u
Grease Lubrication 0.06~0.12

Mating Axis
Hardness > 270 [ HB ]
Roughness 0.4~1.25 [ Ra ]
Working temperature -40~+120 []
Thermal conductivity 52 [ W/mk ]
Coefficient of linear Expansion 11×10-6/K [ Axial ]
Outside surface Plating copper/tin

Application Features

TOB02 Boundary lubrication bushing is based on steel as matrix, middle sintering spherical bronze powder, surface rolled modified POM (POM), and contain storage pits. It is suitable for normal temperature conditions, the low-contained place, replace the traditional copper sleeve both to reduce costs and extend service life. On the rolling mill use, to save fuel frequency, simplifying replacement program.

Available forms

Pedal assembly, balance bushings, brake calipers, steering main pin sleeve jacket and truck tailgate, truck, crane, truck cranes, forest machinery, packaging machinery, construction machinery, hydraulic motors, agricultural machinery and mining machinery, metallurgy machinery, irrigation machinery, automobile, steel rolling industries.
